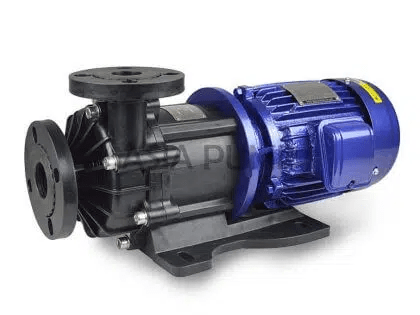

MPH-453 Sealless Magnetic Drive Pump

Suction x Discharge

50A x 40A

Frequency

50/60Hz

Max Capacity

500/500 (L/min)

Max Head

28/28 (m)

Motor Output

2.2kW

Available Material

GFRPP, PVDF, CFRETFE

Features

MPH series magnetic drive pump using the traditional ultimate design to achieve good pump performance and efficiency. Proper selection of the wet end materials enables the pump to operate without fail under short time cavitation and dry running.

• No Leak, Durable, and High Efficiency
• Excellent corrosion resistant thermoplastic materials
• Easy to assemble and maintenance

Max discharge range up to 800L/min

Max discharge head up to 31 m
