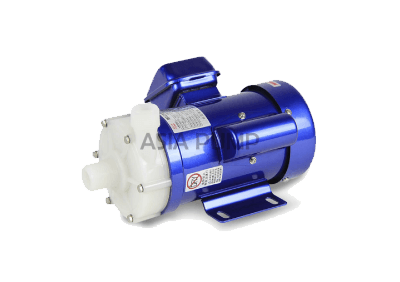

MP-70RZM Sealless Magnetic Drive Pump

WINGINEERINGS 168 SUPPLIES & SERVICE > Magnetic Drive Chemical Pumps > MP Series Magnetic Drive Pump > MP-70RZM Sealless Magnetic Drive Pump

MP-70RZ

Suction x Discharge

G3/4 x G3/4

Frequency

50/60Hz

Max Capacity

40/43 (L/min)

Max Head

14.3/20.3 (m)

Motor Output

180/216W

Available Material

GFRPP, PVDF

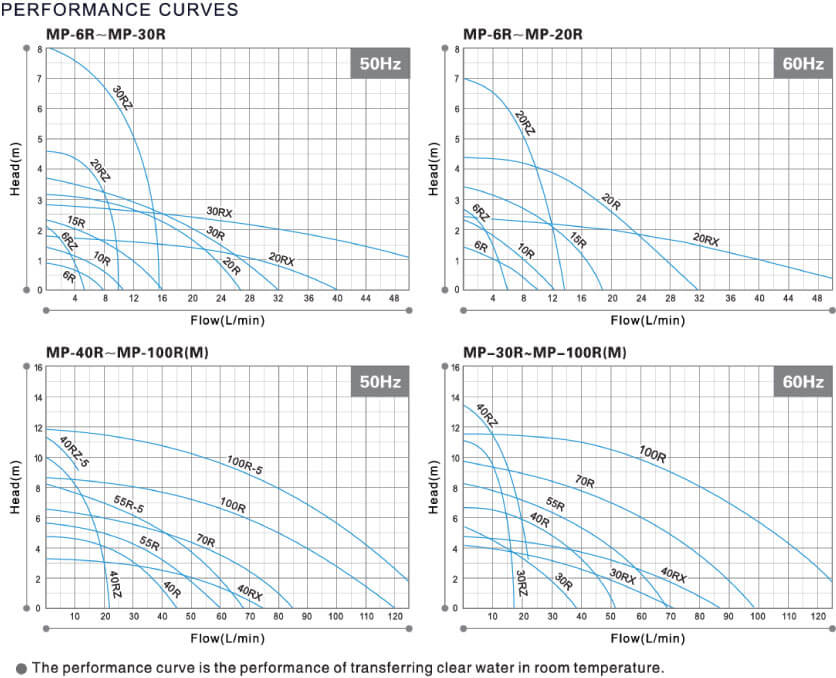

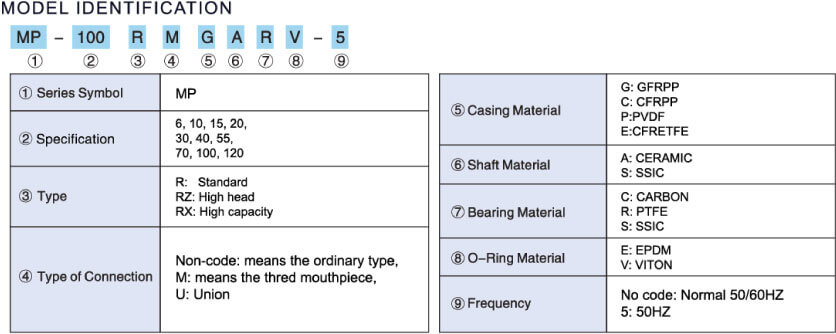

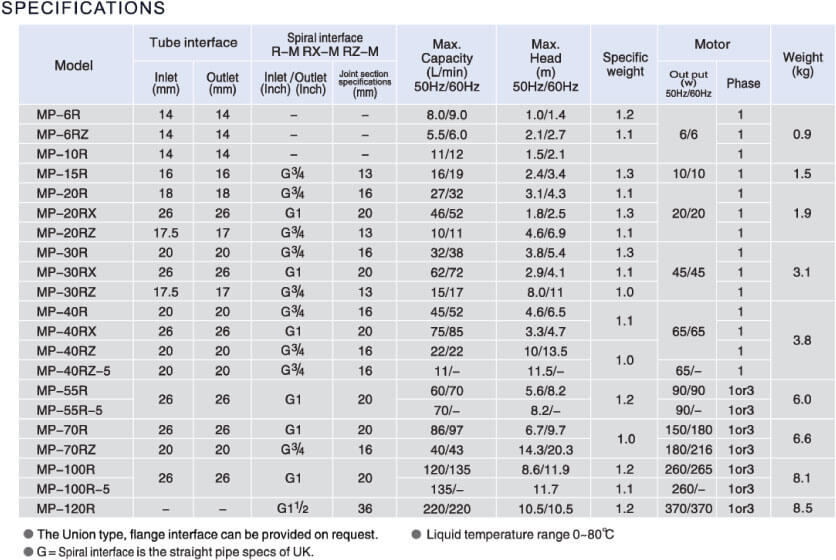

Detailed

mp-detailed-1

mp-detailed-2

mp-detailed-3

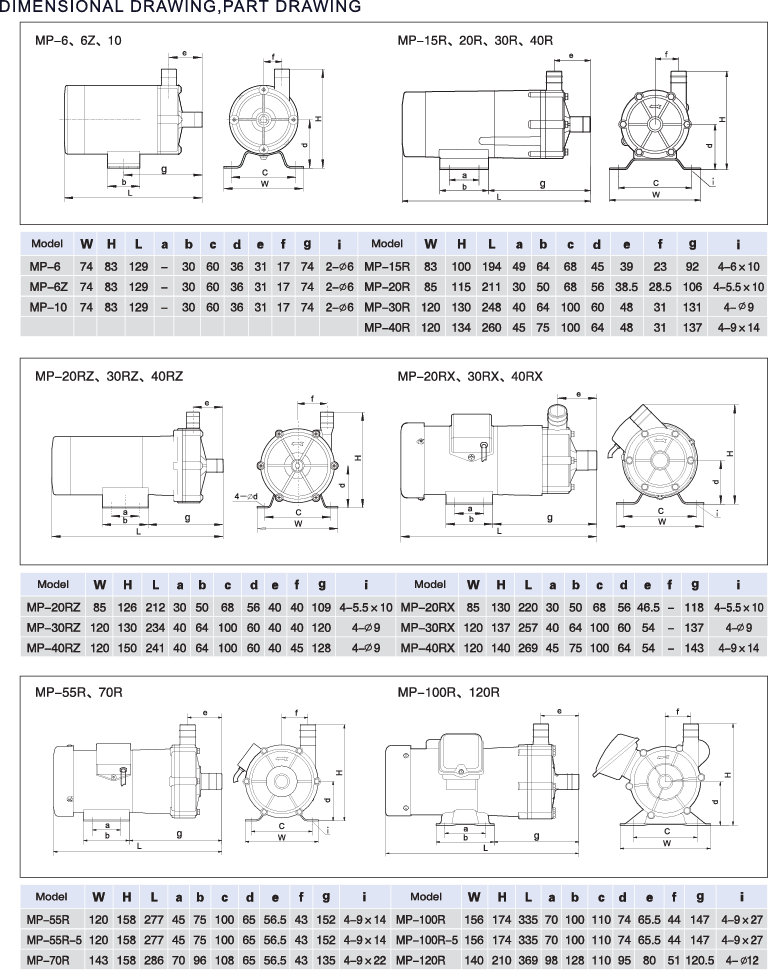

Installation Size

MP_DD_768

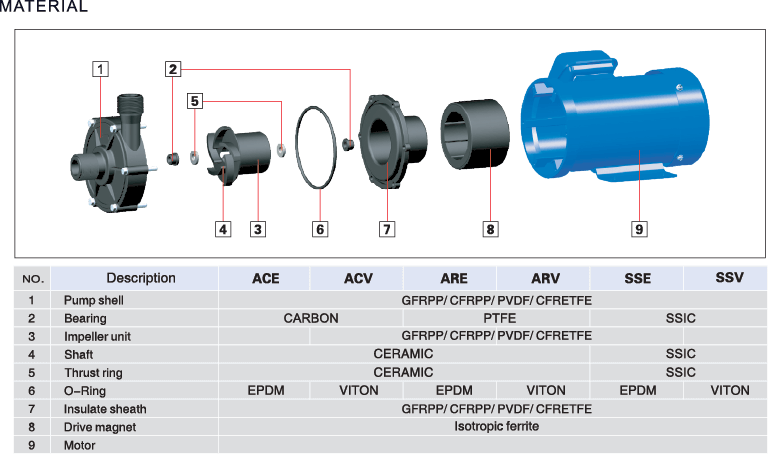

Structure Diagram

MP_M_768

Data Download

Download Catalouge
