AMA-555 High Head Sealless Magnetic Drive Pump

Suction x Discharge

50A x 50A

Frequency

50/60Hz

Max Capacity

520 (L/min)

Max Head

35/39 (m)

Motor Output

3.75kW

Available Material

GFRPP, PVDF,CFRETFE

Features

No leak, Durable and High Efficiency

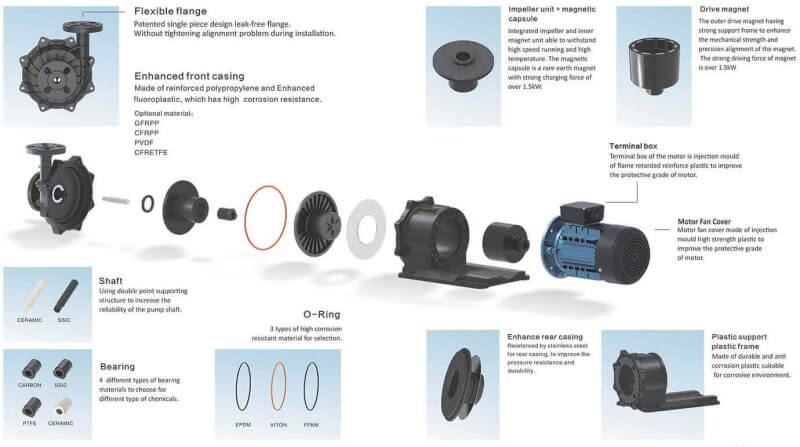

The pump body is seal completely to prevent liquid leakage and hence preventing pollution or corrosion problems caused by many traditional mechanical seal pump. Besides that, the pump’s impeller and magnetic parts integrate well to avoid damage during high-speed rotation and high temperature. The integrated impeller and inner magnet also reduce the assembly risk and therefore increase the efficiency of the pump.

Excellent corrosion resistance thermoplastic materials.

The pump body made from reinforced polypropylene and enhanced fluoroplastics (PP/GFRPP/PVDF). Other than that, the pump shaft, bearing, and thrust ring made from high corrosion-resistant materials such as Ceramic, SSIC, PTFE, and Carbon, which integrated with seal-less and leaked proof design to ensure the safe transfer of chemicals.

Easy to assembly and maintenance

Most of the pump’s parts are molded design for easy to assemble and maintain.

Triple Unique Design To Prevent Damages From Dry-running.

Precision positioning of the inner and outer magnet for non-contact construction.

Through the accurate control of the inner and outer magnet matching positioning, there is a non-contact between bearing backend and thrust ring during dry-running. This can effectively reduce the friction heat generation and increase the durability of the pump.
